リスト : スピンボックス import tkinter as tk root = tk.Tk() root.option_add('*font', ('', 14)) v = ('apple', 'banana', 'cherry', 'grape', 'orange') s1 = tk.Spinbox(root, from_ = 1, to = 10, increment = 1, width = 10) s2 = tk.Spinbox(root, from_ = 1, to = 5, increment = 0.5, format = '%05.2f', width = 10) s3 = tk.Spinbox(root, value = v, width = 10, state = 'readonly') for w in (s1, s2, s3): w.pack(padx = 5, pady = 5) root.mainloop()
1. 2.
3.
N.M | N 行の M 文字目 |
@x,y | テキスト内の (x,y) の位置にある文字 |
end | テキスト末尾 |
マーク名 | その名前のマークをつけた位置 |
タグ名.first | その名前のタグの最初の位置 |
タグ名.last | その名前のタグの最後の位置 |
+Nchars, -Nchars | そこから N 文字先、手前 |
+Nlines, -Nlines | そこから N 行先、手前 |
linestart, lineend | その行の先頭、末尾 |
wordstart, wordend | その単語の先頭、末尾 |
リスト : テキストファイルを表示する import tkinter as tk import tkinter.filedialog as fd import tkinter.scrolledtext as st import sys, os.path # MainWindow root = tk.Tk() root.option_add('*font', ('', 12)) root.title('Text Viewer') # Global path_name = os.getcwd() # Text t0 = st.ScrolledText() t0.pack() # File Select def load_file(): global path_name filename = fd.askopenfilename(filetypes = [('Text Files', ('.txt', '.py'))], initialdir = path_name) if filename != "": path_name = os.path.dirname(filename) fi = open(filename, encoding = 'utf-8') t0.delete('1.0', 'end') for x in fi: t0.insert('end', x) fi.close() t0.mark_set(tk.INSERT, '1.0') t0.focus_set() # Menu m0 = tk.Menu(root); root.configure(menu = m0); m1 = tk.Menu(m0, tearoff = 0) m1.add_command(label = 'Open', under = 0, command = load_file) m1.add_separator m1.add_command(label = 'Exit', under = 0, command = sys.exit) m0.add_cascade(label = 'File', under = 0, menu = m1 ) root.mainloop()

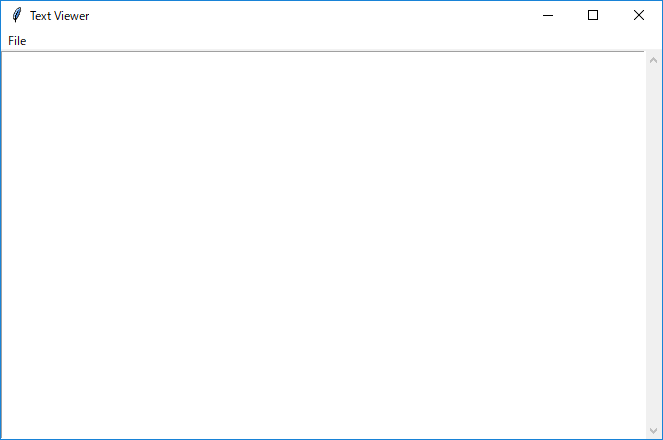

テキストウィジェット

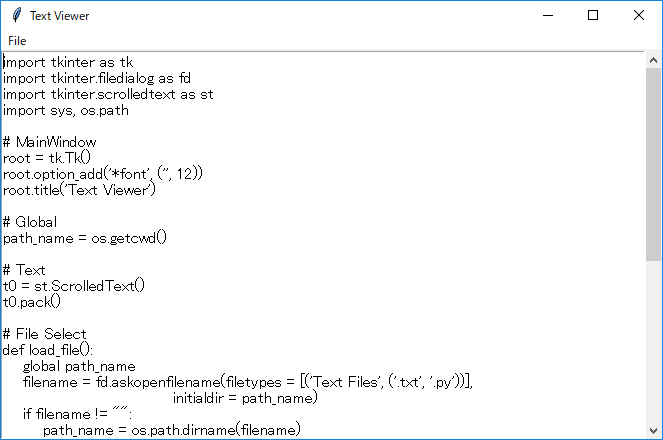

ファイルの表示
リスト : 行番号の挿入と削除 import tkinter as tk import tkinter.filedialog as fd import tkinter.scrolledtext as st import sys, os.path # MainWindow root = tk.Tk() root.option_add('*font', ('', 12)) root.title('Text Viewer') # Global path_name = os.getcwd() # Text t0 = st.ScrolledText() t0.pack() # num_flag = tk.BooleanVar() num_flag.set(False) # Change Number def change_number(): line = int(float(t0.index('end'))) if num_flag.get(): for x in range(1, line): t0.insert('{}.0'.format(x), '{:6d}:'.format(x)) else: for x in range(1, line): t0.delete('{}.0'.format(x), '{}.7'.format(x)) # File Select def load_file(): global path_name filename = fd.askopenfilename(filetypes = [('Text Files', ('.txt', '.py'))], initialdir = path_name) if filename != "": path_name = os.path.dirname(filename) fi = open(filename, encoding = 'utf-8') t0.delete('1.0', 'end') for x in fi: t0.insert('end', x) fi.close() if num_flag.get(): change_number() t0.mark_set(tk.INSERT, '1.0') t0.focus_set() # Menu m0 = tk.Menu(root); root.configure(menu = m0); m1 = tk.Menu(m0, tearoff = 0) m1.add_command(label = 'Open', under = 0, command = load_file) m1.add_checkbutton(label = 'Number', under = 0, variable = num_flag, command = change_number) m1.add_separator m1.add_command(label = 'Exit', under = 0, command = sys.exit) m0.add_cascade(label = 'File', under = 0, menu = m1 ) root.mainloop()
m1.add_checkbutton(label = 'Number', under = 0, variable = num_flag, command = change_number)

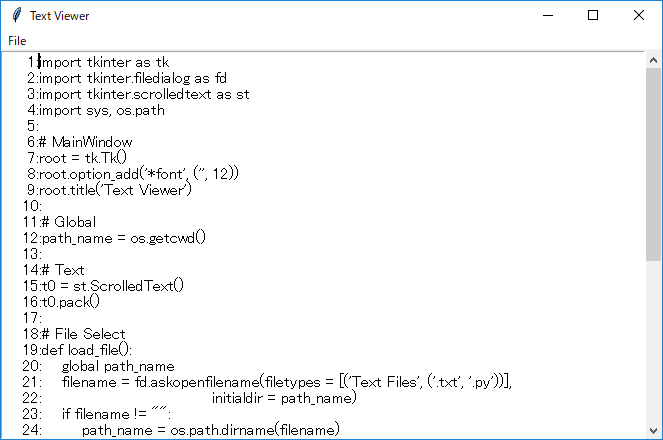

行番号の表示
mark_set(markname, index) | マークの設定 |
mark_unset(*markname) | マークの削除 |
mark_names() | 定義されているすべてのマークを返す |
mark_gravity(markname, left_or_right) | マークのつき方を left と right で指定 |
mark_next(index) | index より後ろにあるマークを返す |
mark_previous(index) | index より前にあるマークを返す |
t0.mark_set(first, '1.3')
t0.insert(first, '1234')
t0.insert(tk.INSERT, 'string')
tag_add(tagname, index1, index2) | 指定した範囲に対して、タグ tagname を設定 |
tag_delete(*tagname) | タグの削除 |
tag_names(index) | index の位置にある文字と関連するすべてのタグを返す |
tag_cget(tagname, option) | タグ tagname のオプションの値を返す |
tag_configure(tagname, option, value) | タグ tagname のオプションを設定する |
tag_bind(tagname, event, callback) | タグ tagname にバインドを設定する |
リスト : 行番号に色をつける def change_number(): line = int(float(t0.index('end'))) if num_flag.get(): for x in range(1, line): t0.insert('{}.0'.format(x), '{:6d}:'.format(x), 'LINENUM') else: for x in range(1, line): t0.delete('{}.0'.format(x), '{}.7'.format(x))
t0.tag_configure('LINENUM', foreground = 'red')
t0.insert(index, string, tagname, ...)

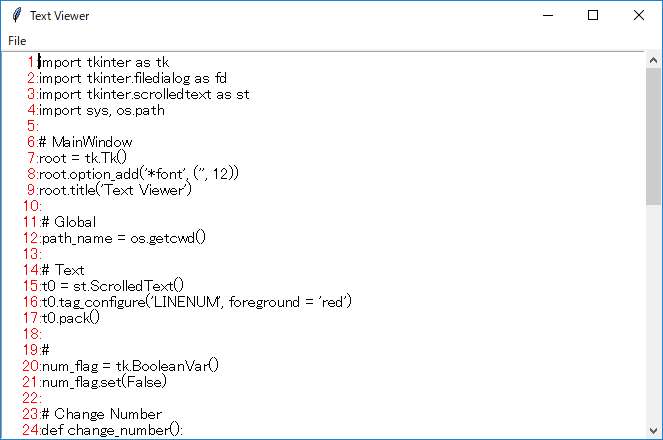

行番号を赤く表示する
window | ウィジェット名 |
create | ウィジェットを生成するコマンドを指定(window を指定しない場合のみ有効) |
align | 上下方向の揃え指定 (baseline, top, bottom, center) |
stretch | 上下方向の引き延ばし |
padx, pady | スペースの指定 |
リスト : ラベル (画像) の挿入 import tkinter as tk import tkinter.filedialog as fd import tkinter.scrolledtext as st import sys, os.path # MainWindow root = tk.Tk() root.option_add('*font', ('', 12)) root.title('Text Viewer') # Global path_name = os.getcwd() path_name_image = os.getcwd() image_buff = {} # Text t0 = st.ScrolledText() t0.tag_configure('LINENUM', foreground = 'red') t0.pack() # num_flag = tk.BooleanVar() num_flag.set(False) # Change Number def change_number(): line = int(float(t0.index('end'))) if num_flag.get(): for x in range(1, line): t0.insert('{}.0'.format(x), '{:6d}:'.format(x), 'LINENUM') else: for x in range(1, line): t0.delete('{}.0'.format(x), '{}.7'.format(x)) # File Select def load_file(): global path_name filename = fd.askopenfilename(filetypes = [('Text Files', ('.txt', '.py'))], initialdir = path_name) if filename != "": path_name = os.path.dirname(filename) fi = open(filename) t0.delete('1.0', 'end') for x in fi: t0.insert('end', x) fi.close() if num_flag.get(): change_number() t0.mark_set(tk.INSERT, '1.0') t0.focus_set() # ラベルの挿入 def insert_image(): global path_name_image filename = fd.askopenfilename(filetypes = [('Image Files', ('.gif', '.ppm')), ('GIF Files', '.gif'), ('PPM Files', '.ppm')], initialdir = path_name_image) if filename != "": if filename in image_buff: image_data = image_buff[filename] else: image_data = tk.PhotoImage(file = filename) image_buff[filename] = image_data path_name_image = os.path.dirname(filename) label = tk.Label(root, image = image_data, relief = 'raised', borderwidth = 4) t0.window_create(tk.INSERT, window = label, align = 'baseline') # Menu m0 = tk.Menu(root); root.configure(menu = m0); m1 = tk.Menu(m0, tearoff = 0) m1.add_command(label = 'Open', under = 0, command = load_file) m1.add_checkbutton(label = 'Number', under = 0, variable = num_flag, command = change_number) m1.add_command(label = 'Image', under = 0, command = insert_image) m1.add_separator m1.add_command(label = 'Exit', under = 0, command = sys.exit) m0.add_cascade(label = 'File', under = 0, menu = m1 ) root.mainloop()
m1.add_command(label = 'Image', under = 0, command = insert_image)

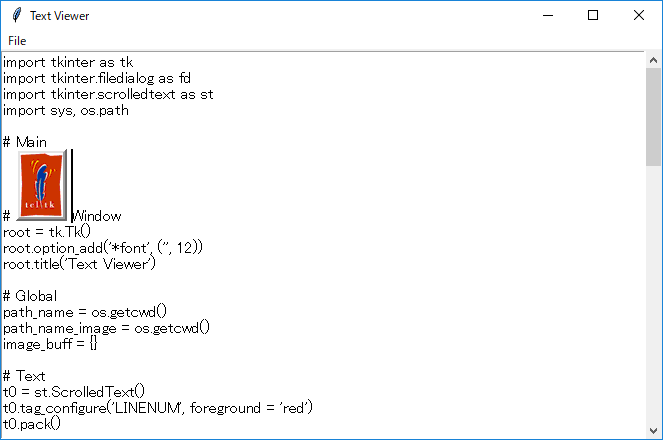

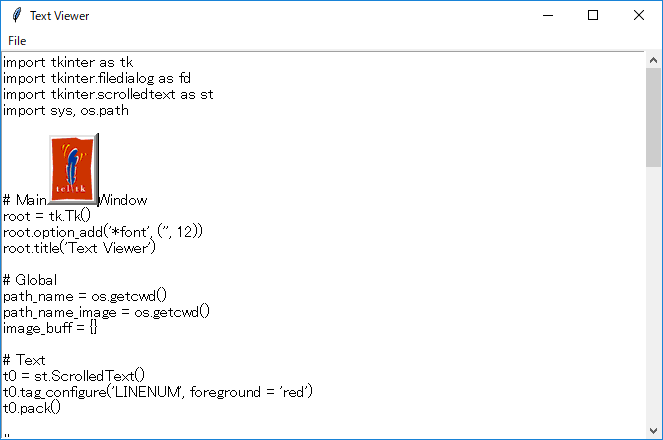

Tcl/Tk Logo を挿入
テキストの編集
image | 表示する画像 |
name | 画像を参照するための名前を付ける |
align | 上下方向の揃え指定(baseline, top, bottom, center) |
padx, pady | スペースの指定 |
リスト : 画像の挿入 def insert_image(): global path_name_image filename = fd.askopenfilename(filetypes = [('Image Files', ('.gif', '.ppm')), ('GIF Files', '.gif'), ('PPM Files', '.ppm')], initialdir = path_name_image) if filename != "": if filename in image_buff: image_data = image_buff[filename] else: image_data = tk.PhotoImage(file = filename) image_buff[filename] = image_data path_name_image = os.path.dirname(filename) t0.image_create(tk.INSERT, image = image_data, align = 'baseline')

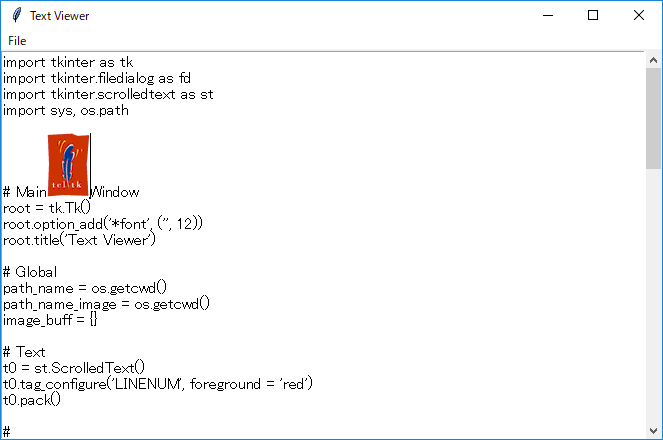

Tcl/Tk Logo を挿入
